High-Performance Liquid Chromatography (HPLC) is one of the most widely used techniques in analytical chemistry for separating, identifying, and quantifying compounds in complex mixtures. It’s trusted in industries such as pharmaceuticals, environmental testing, food and beverage analysis, cosmetics, and life sciences. At the centre of any successful HPLC setup is the column—arguably the most critical component of the system.

The column is where the actual separation occurs. It contains the stationary phase that interacts with the sample components as they pass through with the mobile phase (solvent). UHPLC and HPLC columns play a crucial role in this process, as the way these components interact with the stationary phase determines how quickly they elute from the column and appear as peaks in the chromatogram.

Selecting the right HPLC column is crucial for achieving accurate, reproducible, and efficient results. A poorly chosen column can lead to overlapping peaks, poor resolution, or longer run times, all of which can compromise the quality of data.

Types of HPLC Columns and Their Applications

There are various types of HPLC columns, each designed for specific types of analyses. The most common type is the reversed-phase column, where the stationary phase is non-polar and the mobile phase is polar. This setup is ideal for separating a wide range of organic compounds, including drugs, natural products, and peptides.

Normal-phase columns, on the other hand, use a polar stationary phase and a non-polar solvent system. These are used for separating compounds that are poorly soluble in water, such as lipids or hydrophobic pesticides.

Ion-exchange columns are suitable for separating charged molecules such as amino acids, nucleotides, or proteins. Size-exclusion (or gel filtration) columns are used when the separation is based on the molecular size of analytes, common in protein or polymer analysis.

Each column type has its unique characteristics and limitations, making it essential to choose one that suits the nature of the sample and the objective of the analysis.

Factors to Consider When Selecting an HPLC Column

Choosing the right HPLC column involves evaluating several parameters:

Column dimensions matter. A standard analytical column is usually 150 mm in length with an internal diameter of 4.6 mm, but shorter or narrower columns are available for faster or more sensitive analysis.

The stationary phase plays a big role. Columns typically use silica-based particles modified with various functional groups. C18 columns, for example, are popular for their versatility and are ideal for non-polar to moderately polar compounds.

Particle size affects efficiency and backpressure. Smaller particles (e.g., 1.7 µm) provide higher resolution but also generate more pressure, requiring specialised equipment. Larger particles (e.g., 5 µm) are more forgiving and used in routine analyses.

Pore size becomes important when analysing large molecules. A 100 Å pore size is sufficient for small molecules, while peptides and proteins often require wider pores, like 300 Å.

The column’s end-capping, bonding chemistry, and inertness also influence selectivity and peak shape. Some advanced columns are specifically treated to reduce tailing of basic compounds or enhance retention of polar molecules.

Temperature stability, ph tolerance, and batch-to-batch reproducibility are equally important, especially in regulated environments like pharmaceutical testing.

HPLC Column Use in Real-World Applications

In pharmaceutical labs, HPLC columns are used to analyse drug purity, degradation products, and active pharmaceutical ingredients (APIS). Reversed-phase C18 columns are commonly used due to their ability to separate a wide range of drug compounds efficiently.

In environmental testing, columns are used to detect pollutants in water or soil. Analysts might use polar embedded phases or mixed-mode columns to separate contaminants such as herbicides, industrial chemicals, or emerging pollutants.

The food and beverage industry uses HPLC columns to ensure product quality and safety. Analyses might include checking levels of preservatives, colourants, vitamins, or contaminants. Columns designed for carbohydrate or amino acid analysis are commonly employed.

In the cosmetic industry, HPLC is used for validating active ingredients in skincare products, detecting preservatives, and ensuring regulatory compliance. Specialised columns with high selectivity can separate similar compounds such as parabens or essential oils.

In clinical research, columns are selected based on their ability to handle biological matrices such as plasma or urine. Protein-binding behaviour, recovery rates, and stability are important considerations.

Maintenance and Longevity of HPLC Columns

Even the best HPLC column needs proper care to deliver consistent results over time. Using clean, filtered mobile phases and properly prepared samples helps prevent blockages and degradation of the stationary phase.

Columns should be flushed with compatible solvents after each use, particularly when changing mobile phase composition. Long-term storage should be done with suitable solvents—usually those recommended by the manufacturer.

Column performance can decline gradually. Signs include changes in retention time, reduced peak resolution, and increased pressure. Regular monitoring helps identify when regeneration or replacement is needed.

Some columns allow regeneration by flushing with strong solvents, although this depends on the chemistry of the column. When performance cannot be restored, replacement is the only solution.

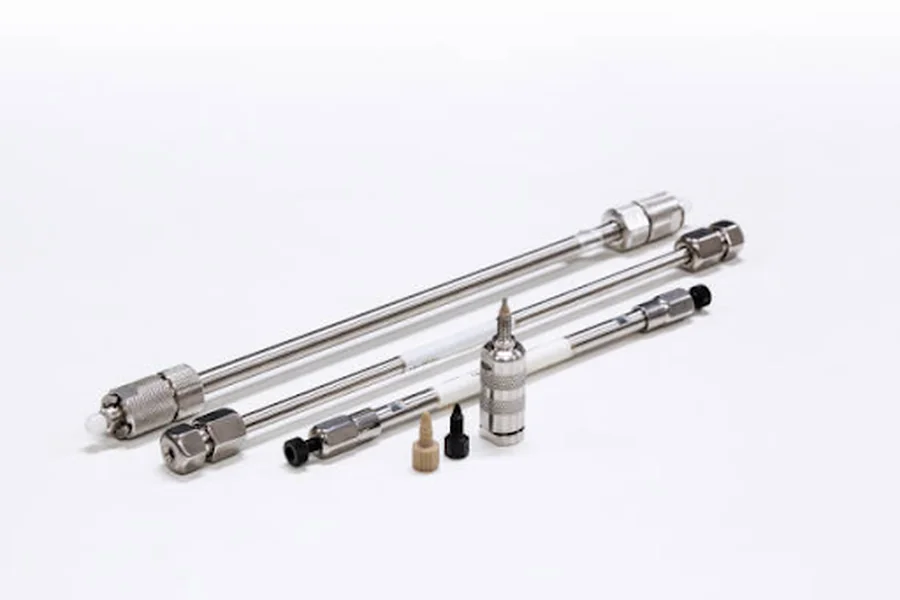

Innovation and Future Trends in HPLC Columns

HPLC column technology continues to evolve with innovations aimed at improving resolution, reducing run times, and expanding chemical compatibility. Core-shell particle columns, for instance, offer higher efficiency than traditional fully porous particles without requiring ultra-high-pressure systems.

Monolithic columns are another innovation, offering faster flow rates and lower backpressure—ideal for high-throughput labs. Columns tailored for specific assays or compounds are also becoming more popular, especially in regulated industries where consistency and speed are vital.

With the growing interest in green chemistry, many labs are also turning to columns that allow the use of eco-friendlier solvents, helping reduce the environmental impact of analytical work.

Final Thoughts

The HPLC column is more than just a consumable—it’s a critical tool that directly affects the outcome of every analysis. Understanding the different types of columns, how they work, and which factors to consider when selecting one can make a significant difference in laboratory efficiency and data accuracy.

In Singapore, where scientific research and advanced industries demand high-quality analysis, having the right HPLC column is key. Whether you’re working in pharmaceuticals, food testing, or environmental monitoring, the column you choose shapes the quality of your results and the speed of your workflows.
